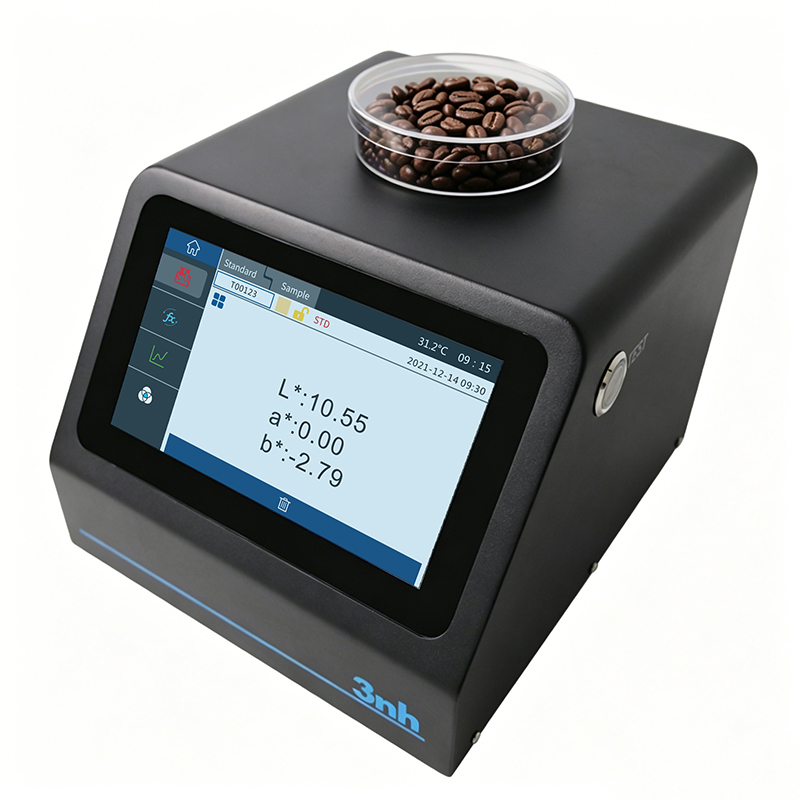

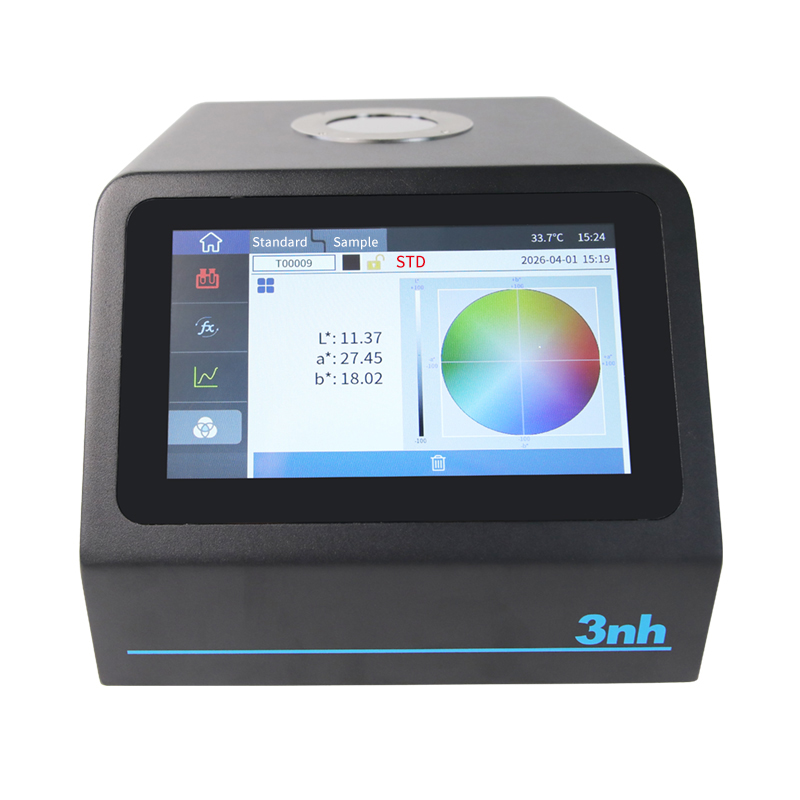

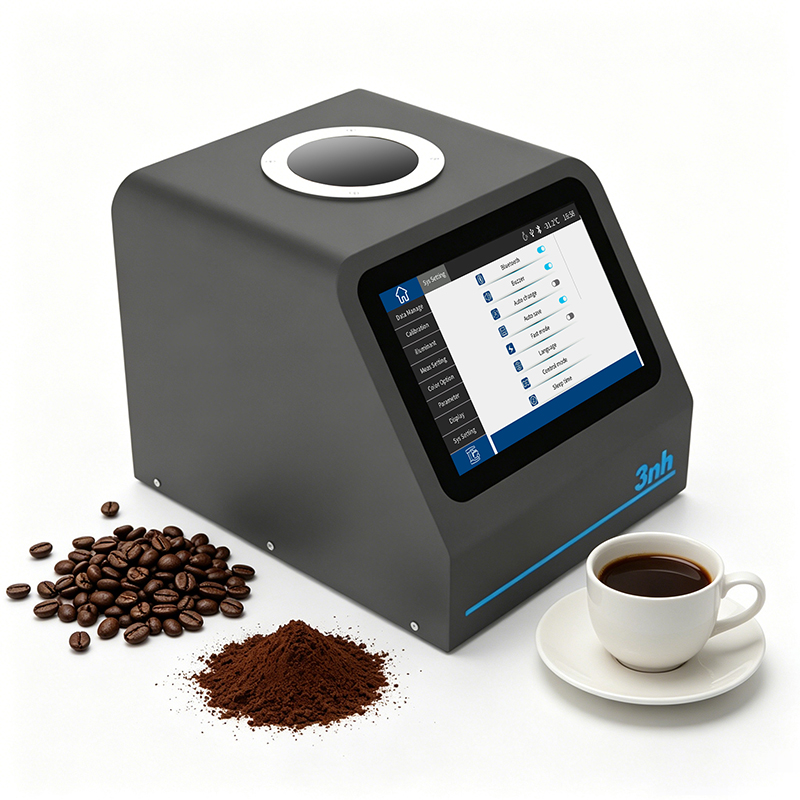

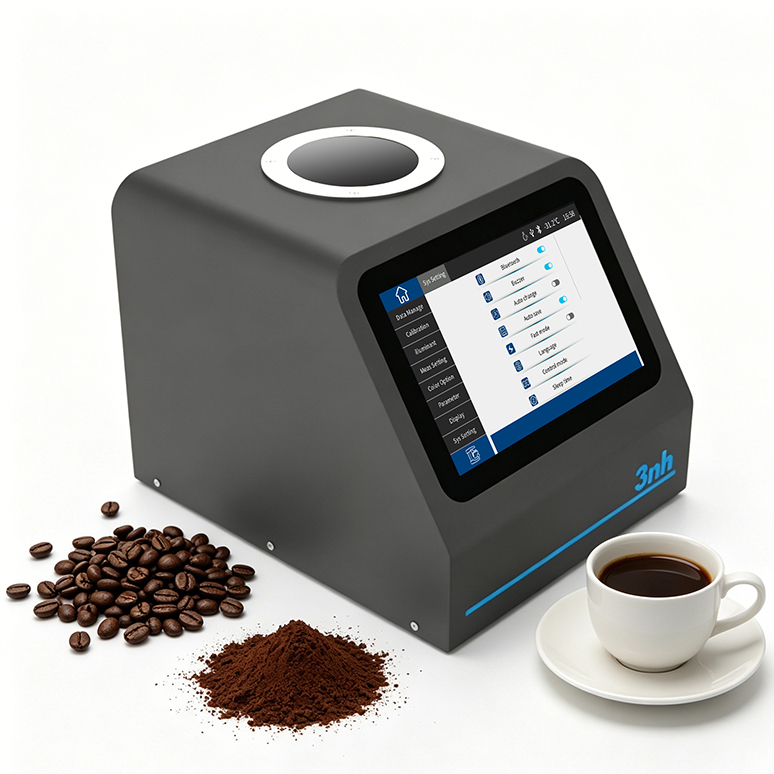

The 3NH PS808C Coffee Colorimeter is a desktop high-precision colorimeter specifically designed for coffee roasting quality control. It adopts a 45/0 optical geometry and a 50 mm large aperture, suitable for irregular granular samples such as coffee beans and coffee powder. Built-in professional indicators including SCAA, HCCI, and coffee roast degree, it enables one-stop accurate quantitative detection of coffee roast levels.

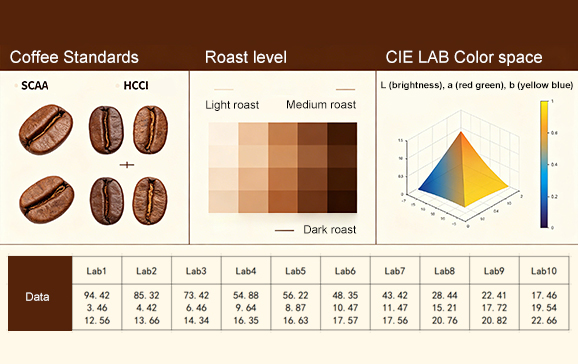

Built-in dedicated indices such as SCAA, HCCI, coffee roast degree, and CIE LAB color space, enabling users to complete mainstream industry indicator measurements without switching devices.

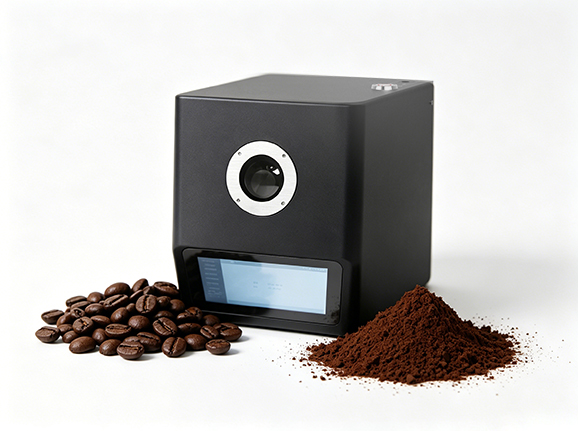

Equipped with a food-grade 50 mm large measuring aperture, it easily measures coffee beans, coffee powder and other samples, effectively reducing measurement fluctuations caused by uneven particle distribution of samples, delivering stable and reliable data.

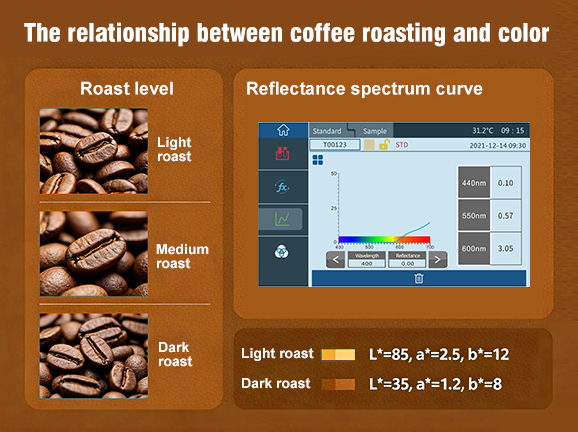

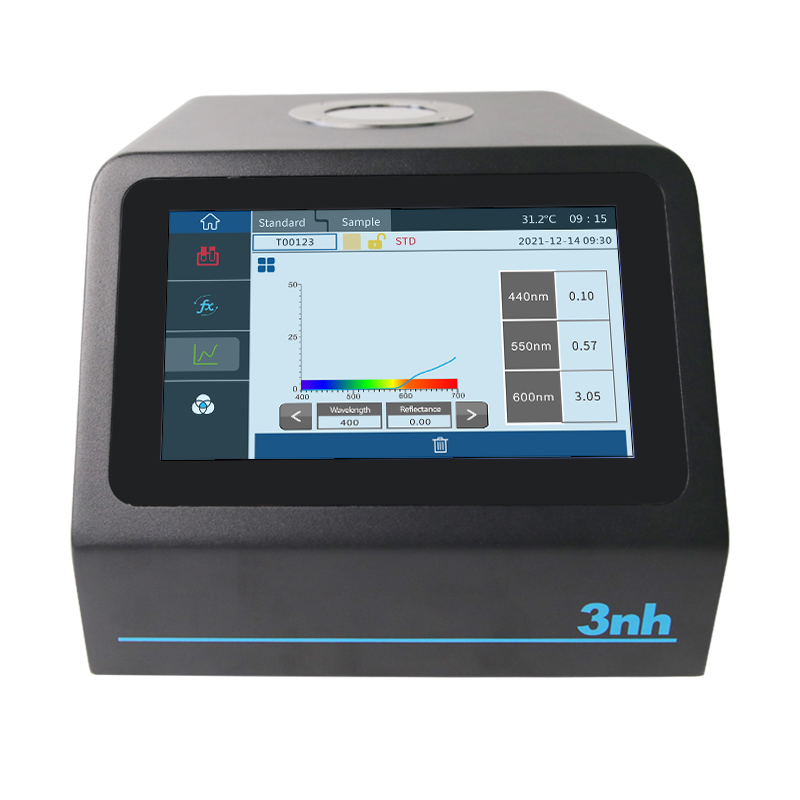

Precise acquisition in the 400-700 nm band with a wavelength interval of 10 nm. Real-time display of the professional spectral reflectance curve, making sample spectral characteristics clear at a glance.

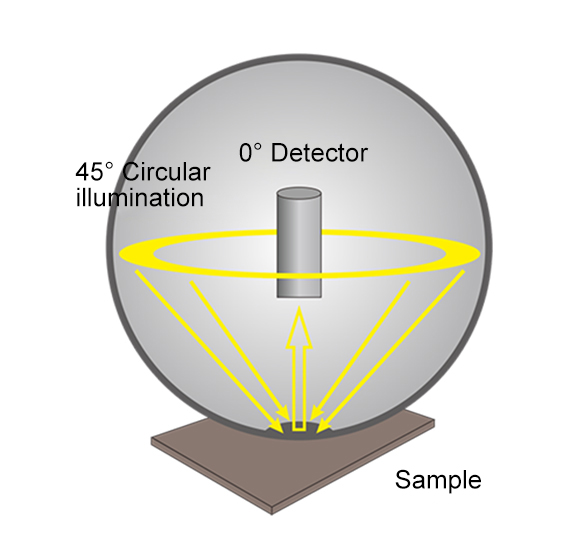

Adopting 45° annular uniform illumination and 0° perpendicular receiving geometric optics, matching human vision, and effectively avoiding interference from sample surface texture and gloss.
Supports local storage of 1,000 standard samples and 30,000 test samples. Measurement records are saved at any time, meeting the traceability and analysis needs of large-scale production.

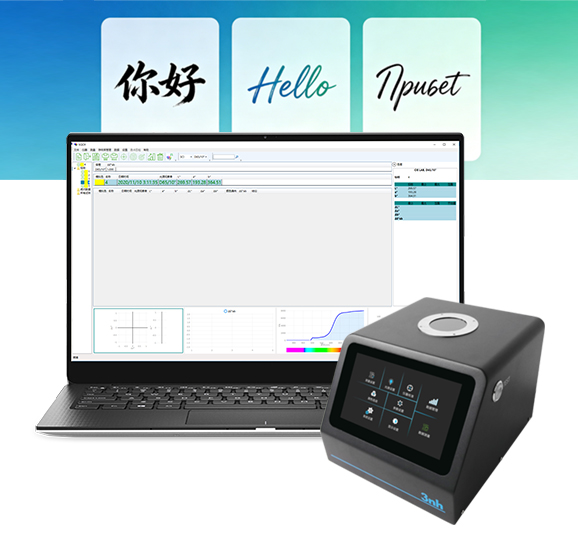

Supports multiple languages including Chinese, English, Russian, etc. Comes with professional quality management software, facilitating data analysis, report export, and multi-scenario applications.
Product Model | PS808C |
Product Name | Coffee Colorimeter |
Optical Geometry | 45/0 (45° annular uniform illumination, 0° reception); |
Features | The Coffee Colorimeter uses a 45/0 optical structure with a 50 mm large aperture. |
Light Source | Combined LED light source |
Integrating Sphere Size | / |
SCI Method | / |
Spectrophotometric Method | Nano-integrated spectral device |
Sensor | Silicon photodiode array (dual-array, 20 groups) |
Measurement Wavelength Range | 400-700 nm |
Wavelength Interval | 10 nm |
Half Bandwidth | 10 nm |
Reflectance Measurement Range | 0-200% |
Measurement Aperture | 50 mm |
Observation Light Sources | D65 |
Observer Angle | 10° |
Color Spaces | CIE LAB |
Color Difference Formulas | ΔE*ab |
Other Chromaticity Index | SCAA, HCCI, coffee roast degree |
Repeatability | Spectral reflectance: standard deviation within 0.07% (within 0.2% at 400-700 nm); |
Inter-Instrument Agreement | ΔE*ab within 0.35 (average of measurements on 12 BCRA Series II color tiles) |
Display | Spectral graph/data, sample colorimetric values, color difference values/graph, pass/fail results, color deviation |
Measurement Time | Approx. 1 s |
Measurement Mode | Single measurement, average measurement (2-99 times) |
Dimensions | 210 x 245 x 188 mm |
Weight | 3.1 kg |
Power | 24 V DC, 3 A power adapter |
Light Source Lifespan | 10 years or >2 million measurements |
Display Screen | 7-inch TFT true color capacitive touchscreen |
Interface | USB, Bluetooth |
Storage | 1,000 standard samples, 30,000 test samples |
Language | Simplified Chinese, English, Traditional Chinese, Russian |
Operating Temperature Range | 0-40℃, 0-85% RH (non-condensing), altitude below 2000 m |
Storage Temperature Range | -20-50℃, 0-85% RH (non-condensing) |
Accessories | Power adapter, data cable, user manual, quality management software (download from official website), white plate, petri dishes x 2 |
Optional Accessories | Micro printer |
Note: | Technical specifications are for reference only. Please refer to the actual product sold. Subject to change without notice. |
1. When I received NH310/NH300 colorimeter and perform measurement, why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black calibration manually when first starting.
2. In which condition, manual white and black calibration and auto calibration are required for NH310?
a. It’s needed to perform manual calibration for NH310 when first starting.
b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300 is required?
a. It’s needed to perform manual calibration for NH300 when first starting.
b. In the subsequent starting, no need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard accessory), Φ4mm (standard accessory), extended Φ8mm (optional accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring aperture.
c. Select “Settings-Aperture Setting” in main menu to select corresponding measuring aperture.
d. After selecting aperture, the instrument will display “White and Black Calibration” interface. White and black calibration must be performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer and don’t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3\USB_Driver file to install the driver.
d. Detailed installation information please read the "Installing Software" under CQCS3 User manual.doc.
6. How to check communication port?
a. Connect colorimeter to the PC with USB cable.
b. Turn on the colorimeter to enter main menu. Select “Comm” and press “Enter” key to start communication.
c. Right click on “My Computer” on the desktop. Click “Manage” -> “Device Manager” -> “Ports”, you can see similar display as “SCI USB2Serial (COM6)”.
d. Click “Settings->Communication Parameters” in CQCS3 software interface. Select the corresponding port in “Serial Port”.
7. After completing CQCS3 installation, how to solve the problem if it display “! USB Device” or “! SCI USB2Serial (COM6)” when checking the communication port?
a. Right click “! USB Device” or “! SCI USB2Serial (COM6)”, “Update Driver” -> “Install from a list or specific location (Advanced)” -> “Next” ->“Include this location in the search” -> “Browse”, specify USB driver file path “CQCS3\USB_Driver”, click “Next”. Then it will install successfully.
b.Detailed installation information please refers to “2.2 Installing USB Driver” in Color Quality Management System User Manual.doc.
8. Notes for First Using CQCS3 Software
a. Users must specify Standard File Name, Sample File Name and Sample Database File Name when first use.
b.Standard File is use to store standard measurement data. Sample File is used to store sample measurement data. Sample Database File is used to store the measured data exported from sample records.
9. How to solve the problem when “Connection Timeout” occurred?
a. When the colorimeter is disconnected to the PC, “Connection Timeout” will occur. At the moment, you have to check whether the USB cable is well connected the colorimeter and the PC. Then you can re-plug the USB to try out.
b. After ensuring the colorimeter is connected to the PC with USB cable, turn on the colorimeter and enter the main menu. Select “Comm” and press “Enter” key to start communication.
c. Turn off CQCS3 software, and reopen it.
10. How to solve the problem when the interface display "USB Disconnect"
a. Check whether the USB cable is connected. If not, please connect it. Check whether the connection is effective. You can re-plug the USB cable to test.
b. If the USB cable is connected well but the interface still displays "USB Disconnect", please re-start the colorimeter and enter "Menu" -"Comm"to start the communication.
c. Change the USB cable or change the USB port in you PC.
11. How to solve the problem when the colorimeter cannot be turned on in the condition of battery-powered?
a. If this phenomenon occurred, it means the battery power is not enough. You need to charge the battery.
b. When charge the battery, please insert the battery to the instrument, and plug in the adapter to charge the battery. After 5 minutes, the instrument can be turned on.
c. If the instrument still cannot be turned on after charging 5 minutes, you can pull out the adapter and re-plug in to check it. Or repeat this operation.
d. If the instrument still cannot be turned on after charging 5 minutes, you can turn off the colorimeter and turn on it again to check it. Or repeat this operation.
e. If you have tried all the methods above but the colorimeter still cannot be turned on, please change the battery.
